供应环保智能气动罩杯定型机，海棉文胸罩杯定型机，内衣胸杯胸垫定型机

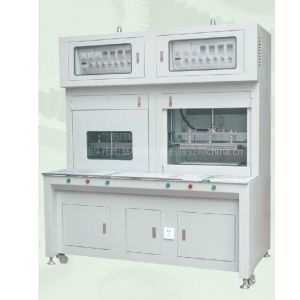

KV-168A/F-113 气动罩杯定型机
KV-168A/F-113 Foam Cup Molding Machine
KV-168A/F-113 Foam Cup Molding Machine
用途：主要用于内衣模杯产品及其他同类产品的定型生产.
特点：
(1) 采用四导杆导向，刚性好，导向精度高。节省操作时间，合模平稳。
(2) 全封闭结构，强力抽烟，工作台面内置冷却风扇，有利于模杯散热，延长色变周期。
(3) 双层电箱门，可保护电器，外门有钢化玻璃窗口，温控表视觉性良好，可以直观模具各部位的温度，调节自如。
(4) 本公司针对内衣模杯生产开发的***温度控制系统，运用可控硅移相触发电流控制加热，可使发热更均匀、平稳、省电，节能效果佳，并可延长发热管使用寿命。
技术参数：
电源/功率：220V /9.6KW
电热片规格：Φ12×300mm×400W-220V
模台尺寸：500mm×300mm
机台尺寸：1700mm×820mm×2100mm
适用物料：文胸、服装等面料
适用模具：文胸棉杯模具
重量：1100KG
Function：It is mainly used for molding bra cups and other similar products.
Features:
(1) It adopts four guide rods with a high accuracy in guiding, which saves working time and helps the upper and lower moulds matched steadily.
(2) With whole-sealed structure, it has strong pumping installation. Equipped with external cooling fans on the molding table, it is useful for heat dissipation and prolonging discoloring period.
(3) The electric box is two-doubled door, which can protect electrical appliance. The outdoor has equipped with toughened glass window. The temperature controller is of good vision which can help operator view directly the temperature in each part and it is handy to be adjusted.
(4) To direct at the specific temperature control system in the development of bra cups production, we utilize silicon controlled phase shifting triggering current to control heating. So, it can make the temperature more even and steady with remarkable energy-saving efficiency and it will prolong the heating tube's service life.
Technical parameter:
(1) Power supply/ Power: 220V /9.6KW
(2) Specification of the heating piece: Φ 12×300mm×400W-220V
(3) Dimension of the mould table: 500mm×300mm
(4) Dimension of the machine: 1700mm×820mm×2100mm
(5) Applicable material: materials for bra and other garments
(6) Applicable moulds: moulds for foam cups
(7) Weight: 1100KG
